This compact controller is suitable as a decentral control and sensor / actor interface for scalable automation tasks based on the CANbus. The local peripheral can be extended with decentral CANopen devices for example. The COMBImodule devices have a broad selection of I/Os for industry standard signals.

Free, in C programmable and configurable LED-bars and switches enable user inputs and display of status information. Software examples are part of the supply package.

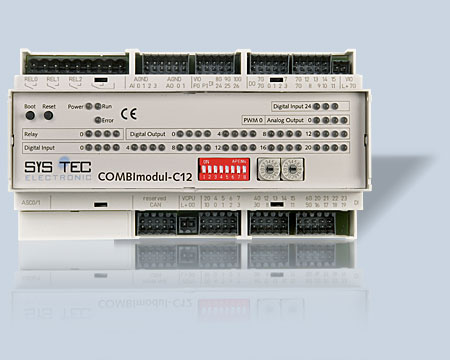

Technical Features COMBImodul-C12

• Microcontroller Fujitsu MB90F543 at 16MHz with integrated CAN-controller
• 128kByte Flash
• 6kByte RAM
• 2kByte EEPROM (max. 32kByte)

• 24 digital inputs 24VDC, galvanic isolated
• 16 digital outputs 24VDC/0.5A (galvanic isolated, short circuit proof)
• 4 Relay outputs 250VAC/3A (3 NO, 1 NO/NC)
• 4 analog inputs 0-10V (0-20mA)
• 2 analog outputs 0-10V (short-circuit proof)
• 3 fast counter inputs 24VDC, 15kHz, galvanic isolated
• 2 PWM outputs 24VDC/0.5A, galvanic isolated
• RTC, battery backed
• Status LEDs for I/O, diagnosis, power, CAN
• 8pos DIP-switch, Hex-encoding switch
• Connectors: removable spring-time connectors

• 2 x High-speed CAN 2.0B interface, galvanic isolated
• 1 x RS-232 (3-wire)
• 1 x RS-232 (5-wire, including modem control lines)

• 24VDC ± 20% power supply, separated power inputs for I/O and CPU
• power consumption: <100mA, typical 75mA

• suitable for DIN/EN rail mounting
• Ingress protection Level: IP20
• Dimensions L/W/H: 160mm/75mm/95mm, weight: 250g

Scope of delivery:

Assembled and tested device, hardware manual, microcontroller documentation, on-board periphery, software drivers, compiler (Softune Workbench), demoversion On-chip Flashdebugger, complete set of cables and connectors
