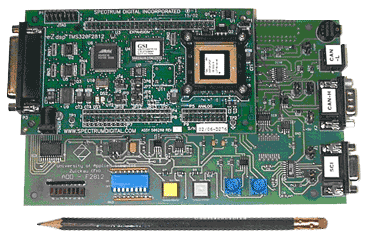

The Zwickau University adaptor board is designed to be used with the Spectrum Digital TMS320F2808, TMS320F2812, TMS320F28335 ‘eZdsp’ board. The peripheral expansion sockets on the eZdsp board can be fitted with header plugs which allow it to be connected to the Zwickau board. All laboratory experiments of the C2000 teaching CD-ROM are supported by the adaptor board.
The adaptor includes the following features:
- 8x LED’s connected to GPIOB7..B0
- 8x DIP switches connected to GPIOB15..B8
- 2x momentary pushbuttons connected to GPIOD6 & D1
- Loudspeaker connected to T1PWM output
- 2x potentiometers allowing 0-3V to be applied to ADC channels A0 & B0
- CAN-bus interface: link selectable between high-speed (SN65HVD230D) and low speed (TJA1054A) transceivers, each with a separate connector
- SCI-A port connected to RS232 transceiver and 9-pin ‘D’ socket
- SPI output connected to serial EEPROM (M95080) and a serial DAC (TLV5617A)
- I2C temperature sensor connected to GPIOG4 and GPIOG5 pins
The board is supplied with a description, a hardware configuration file and sample programs to test all parts of the peripherals.
|
